How to Install and Use Gremlin in a Docker Container
Introduction
Gremlin is a simple, safe and secure way to use Chaos Engineering to improve system resilience. You can use Gremlin with Docker in a variety of ways. It is possible to attack Docker containers and it is also possible to run Gremlin in a container to create attacks against the host or other containers.
To run Gremlin on a host to attack Docker containers, view the guide on How to Install and Use Gremlin with Docker on Ubuntu 16.04.
This tutorial will provide a walkthrough of the following:
- How to install Docker
- How to create an Nginx Docker container to attack using Gremlin
- How to install Gremlin in a Docker container
- How to create a CPU Attack from a Gremlin Container against the host
- How to create a CPU Attack from a Gremlin Container against a Nginx Docker container
Prerequisites
Before you begin this tutorial, you'll need the following:
- A server with Ubuntu 16.04
- A Gremlin account (sign up here)
Step 1 - Installing Docker
In this step, you'll install Docker.
Add official Docker GPG key:
bash
1curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
Use the following command to set up the stable repository.
bash
1sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable"
Update the apt package index:
bash
1sudo apt-get update
Make sure you are about to install from the Docker repo instead of the default Ubuntu 16.04 repo:
bash
1apt-cache policy docker-ce
Install the latest version of Docker CE:
bash
1sudo apt-get install docker-ce
Docker should now be installed, the daemon started, and the process enabled to start on boot. Check that it is running:
bash
1sudo systemctl status docker
Make sure you are in the Docker usergroup, replace tammy with your username:
bash
1sudo usermod -aG docker tammy
Step 2 - Create an htop container for monitoring
htop is an interactive process viewer for unix.
First create the Dockerfile for your htop container:
bash
1vim Dockerfile
Add the following to the Dockerfile:
docker
1FROM alpine:latest2RUN apk add --update htop && rm -rf /var/cache/apk/*3ENTRYPOINT ["htop"]
Build the Dockerfile and tag the image:
bash
1sudo docker build -t htop .
Run htop inside a container, this will monitor the host:
bash
1sudo docker run -it --rm --pid=host htop
To exit htop, use the q key.
Next we will create an nginx container and monitor the new container directly by joining the container pid namespace.
Step 3: Create an nginx Docker container to be used for Gremlin Attacks
First we will create a directory for the html page we will serve using nginx:
bash
1mkdir -p ~/docker-nginx/html2cd ~/docker-nginx/html
Create a simple html page:
bash
1vim index.html
Paste in the content shown below:
html
1<html>2 <head>3 <title>Docker nginx tutorial</title>4 <link5 rel="stylesheet"6 href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css"7 integrity="sha384-Gn5384xqQ1aoWXA+058RXPxPg6fy4IWvTNh0E263XmFcJlSAwiGgFAW/dAiS6JXm"8 crossorigin="anonymous"9 />10 </head>11 <body>12 <div class="container">13 <h1>Hello it is your container speaking</h1>14 <p>This nginx page was created by your Docker container.</p>15 <p>Now it's time to create a Gremlin attack.</p>16 </div>17 </body>18</html>
Create a container using the nginx Docker image:
bash
1sudo docker run -l service=nginx --name docker-nginx -p 80:80 -d -v ~/docker-nginx/html:/usr/share/nginx/html nginx
View the docker-nginx container
bash
1sudo docker ps -a
You will see the following:
bash
1CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES2352609a67e95 nginx "nginx -g 'daemon off..." 33 seconds ago Up 32 seconds 0.0.0.0:80->80/tcp docker-nginx
Step 4 - Installing Gremlin in a Docker container
After you have created your Gremlin account (sign up here) you will need to find your Gremlin Daemon credentials. Login to the Gremlin App using your Company name and sign-on credentials. These were emailed to you when you signed up to start using Gremlin.
Navigate to Team Settings and click on your Team.
Store your Gremlin client credentials as environment variables, for example:
bash
1export GREMLIN_TEAM_ID=3f242793-018a-5ad5-9211-fb958f8dc084
bash
1export GREMLIN_TEAM_SECRET=eac3a31b-4a6f-6778-1bdb813a6fdc
By default, Gremlin launches sidecars with no user namespace. However, when Docker is configured to remap container users to the host, Gremlin sidecars must be launched in the host's user namespace to successfully execute attacks. To see if your Docker instance is configured to remap users, check the following:
bash
1/etc/docker/daemon.json
To tell Gremlin to launch sidecars with the host's user namespace, pass the following environment variable to the Gremlin daemon:
bash
1export GREMLIN_BYPASS_USERNS_REMAP=1
Next run the Gremlin Daemon in a Container.
Use docker run to pull the official Gremlin Docker image and run the Gremlin daemon:
bash
1docker run -d --net=host \2 --cap-add=NET_ADMIN --cap-add=SYS_BOOT --cap-add=SYS_TIME \3 --cap-add=KILL \4 -v $PWD/var/lib/gremlin:/var/lib/gremlin \5 -v $PWD/var/log/gremlin:/var/log/gremlin \6 -v /var/run/docker.sock:/var/run/docker.sock \7 -e GREMLIN_TEAM_ID="$GREMLIN_TEAM_ID" \8 -e GREMLIN_TEAM_SECRET="$GREMLIN_TEAM_SECRET" \9 gremlin/gremlin daemon
If you have set GREMLIN_BYPASS_USERNS_REMAP environment variable above, you need to run the Gremlin daemon by setting that environment variable like so:
bash
1docker run -d --net=host \2 --cap-add=NET_ADMIN --cap-add=SYS_BOOT --cap-add=SYS_TIME \3 --cap-add=KILL \4 -v $PWD/var/lib/gremlin:/var/lib/gremlin \5 -v $PWD/var/log/gremlin:/var/log/gremlin \6 -v /var/run/docker.sock:/var/run/docker.sock \7 -e GREMLIN_TEAM_ID="$GREMLIN_TEAM_ID" \8 -e GREMLIN_TEAM_SECRET="$GREMLIN_TEAM_SECRET" \9 -e GREMLIN_BYPASS_USERNS_REMAP="$GREMLIN_BYPASS_USERNS_REMAP" \10 gremlin/gremlin daemon
For additional advanced settings, please visit our Gremlin Docs: Advanced Configuration
Use docker ps to see all running Docker containers:
bash
1sudo docker ps
1CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES2b281e749ac33 gremlin/gremlin "/entrypoint.sh daem…" 5 seconds ago Up 4 seconds relaxed_heisenberg
Jump into your Gremlin container with an interactive shell (replace b281e749ac33 with the real ID of your Gremlin container):
bash
1sudo docker exec -it b281e749ac33 /bin/bash
From within the container, check out the available attack types:
bash
1gremlin help attack-container
1Usage: gremlin attack-container CONTAINER TYPE [type-specific-options]2Type "gremlin help attack-container TYPE" for more details:34 blackhole # An attack which drops all matching network traffic5 cpu # An attack which consumes CPU resources6 io # An attack which consumes IO resources7 latency # An attack which adds latency to all matching network traffic8 memory # An attack which consumes memory9 packet_loss # An attack which introduces packet loss to all matching network traffic10 shutdown # An attack which forces the target to shutdown11 dns # An attack which blocks access to DNS servers12 time_travel # An attack which changes the system time.13 disk # An attack which consumes disk resources14 process_killer # An attack which kills the specified process
Exit the container:
bash
1exit
Step 5 - How to create a CPU Attack from a Gremlin Container against the host using the Gremlin CLI
We will use the Gremlin CLI attack command to create a CPU attack. This attack will consume CPU using the default settings of 1 core for 60 seconds.
Run the following to create the CPU attack:
bash
1sudo docker run -d \2 --net=host \3 --pid=host \4 --cap-add=NET_ADMIN \5 --cap-add=SYS_BOOT \6 --cap-add=SYS_TIME \7 --cap-add=KILL \8 -e GREMLIN_TEAM_ID="${GREMLIN_TEAM_ID}" \9 -e GREMLIN_TEAM_SECRET="${GREMLIN_TEAM_SECRET}" \10 -v /var/run/docker.sock:/var/run/docker.sock \11 -v /var/log/gremlin:/var/log/gremlin \12 -v /var/lib/gremlin:/var/lib/gremlin \13 gremlin/gremlin attack cpu
View the progress of the attack using the htop container you created earlier:
bash
1sudo docker run -it --rm --pid=host htop
If you have setup the Gremlin Slackbot it will also notify your team via Slack:
Step 6 - How to create a CPU Attack from a Gremlin Container against the Nginx Docker container using the Gremlin CLI
Gremlin has an attack-container argument that can be used to attack containers by their container ID or name. We will use the Gremlin CLI attack-container argument to create a CPU attack. This attack will consume CPU using the default settings of 1 core for 60 seconds.
Before the attack use htop to monitor the docker-nginx container, replace f291a040a6aa with your container ID:
bash
1sudo docker run -it --rm --pid=container:f291a040a6aa htop
You will see the following:
bash
11 [ 0.0%] Tasks: 3, 0 thr; 1 running2 2 [| 0.7%] Load average: 0.72 0.41 0.213 Mem[||||||||||||||||||||||||| 141M/3.86G] Uptime: 00:30:344 Swp[ 0K/0K]56 PID USER PRI NI VIRT RES SHR S CPU% MEM% TIME+ Command7 47 root 20 0 4488 2236 932 R 0.0 0.1 0:00.07 htop8 1 root 20 0 32428 5180 4504 S 0.0 0.1 0:00.03 nginx: master process nginx -g daemon off;9 8 101 20 0 32900 2476 1448 S 0.0 0.1 0:00.00 nginx: worker process
Run the following to create the CPU container attack against a container, replacef291a040a6aa with your container ID:
bash
1sudo docker run -d -it \2 --cap-add=NET_ADMIN \3 -e GREMLIN_TEAM_ID="${GREMLIN_TEAM_ID}" \4 -e GREMLIN_TEAM_SECRET="${GREMLIN_TEAM_SECRET}" \5 -v /var/run/docker.sock:/var/run/docker.sock \6 gremlin/gremlin attack-container f291a040a6aa cpu
View the progress of the attack using the htop container you created earlier:
bash
1sudo docker run -it --rm --pid=container:f291a040a6aa htop
You will see the following result:
bash
11 [| 0.7%] Tasks: 4, 1 thr; 2 running2 2 [||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| 100.0%] Load average: 0.30 0.33 0.193 Mem[||||||||||||||||||||||||| 163M/3.86G] Uptime: 00:32:094 Swp[ 0K/0K]56 PID USER PRI NI VIRT RES SHR S CPU% MEM% TIME+ Command7 51 root 20 0 15456 13696 4112 S 99.0 0.3 0:11.25 gremlin attack cpu8 70 root 20 0 4488 1988 948 R 0.0 0.0 0:00.04 htop9 1 root 20 0 32428 5180 4504 S 0.0 0.1 0:00.03 nginx: master process nginx -g daemon off;10 8 101 20 0 32900 2476 1448 S 0.0 0.1 0:00.00 nginx: worker process
Example: Create a blackhole attack on an Nginx Docker container
bash
1sudo docker run -it \2 --cap-add=NET_ADMIN \3 -e GREMLIN_TEAM_ID="${GREMLIN_TEAM_ID}" \4 -e GREMLIN_TEAM_SECRET="${GREMLIN_TEAM_SECRET}" \5 -v /var/run/docker.sock:/var/run/docker.sock \6 gremlin/gremlin attack-container f291a040a6aa blackhole -h google.com
View the progress of the attack using the htop container you created earlier:
bash
1sudo docker run -d -it --rm --pid=container:f291a040a6aa htop
You will see the following result:
bash
1Attacking container 'f291a040a6aa' with command ["attack", "blackhole", "-h", "google.com"] ...2Spawning sidecar container 'gremlin-f291a040a6aa' based on 'gremlin/gremlin:latest' for attack ...3Setting up blackhole gremlin with guid '0df1ccf5-0801-11e8-9acf-0242fe3ba0bc' for 60 seconds4Setup successfully completed5Running blackhole gremlin with guid '0df1ccf5-0801-11e8-9acf-0242fe3ba0bc' for 60 seconds6Dropping all egress traffic to 172.217.12.1747Dropping all ingress traffic from 172.217.12.1748Dropping all ingress traffic from 172.217.11.469Dropping all egress traffic to 172.217.11.4610Dropping all egress traffic to 172.217.10.11011Dropping all ingress traffic from 172.217.10.11012Reverting impact!
Running attacks from the Gremlin UI
Now that the Gremlin container is running in your docker environment, the Gremlin UI is a centralize location to attack either the Host or other docker containers on the host.
To start an attack from the UI, login to using your Gremlin credentials and select Attack from the left panel. Then select New attack to get the following screen:
If you have multiple targets, you can target multiple targets for the attack by using tags or by finding the exact target. For our example, we'll use Exact:

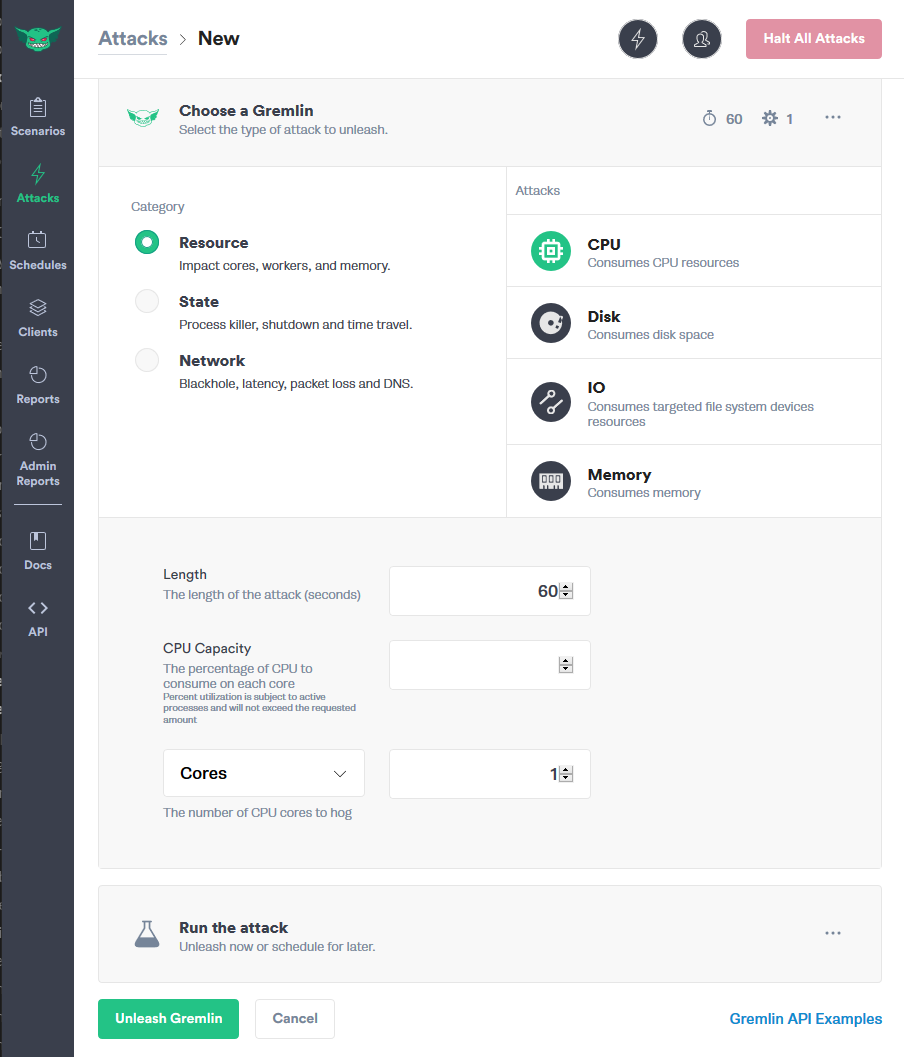

Next we'll select an attack to run against the container. Like our CLI example, we'll use the CPU attack. For more information about all our attacks, please visit Attacks

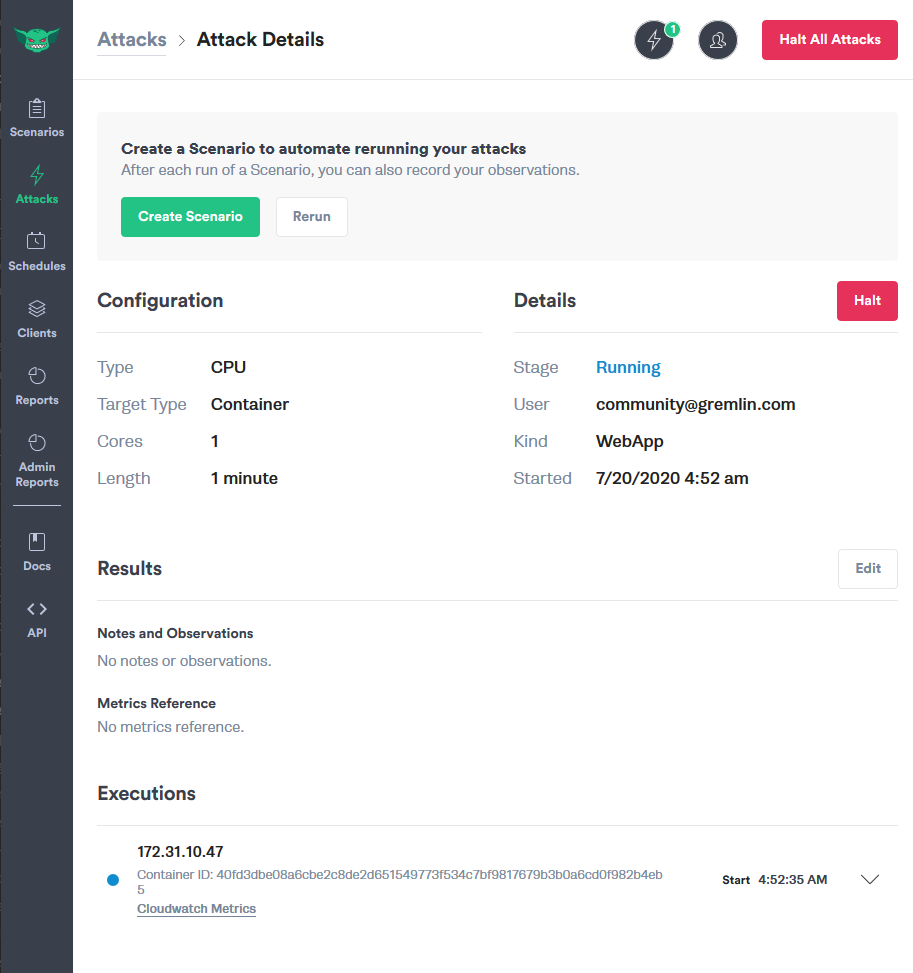

Once the attacks begins, you'll be taken to the following screen. You can follow the progress of attack from this page. The Stage under Details will state the current progress of the attack. If for some reason you need to stop the attack, the Halt button will stop the attack.
Conclusion
You've installed Gremlin in a Docker container and validated that Gremlin works by running the hello World of Chaos Engineering for Docker Containers, the CPU Resource attack. You have run a CPU resource attack from the Gremlin Docker container against the host. You have also run a CPU resource attack and blackhole attack from the Gremlin Docker container against an nginx Docker container. You now possess tools that make it possible for you to explore additional Gremlin Attacks including attacks that impact State and Network.
Gremlin's Developer Guide is a great resource and reference for using Gremlin to do Chaos Engineering. You can also explore the Gremlin Community for more information on how to use Chaos Engineering with your application infrastructure.
